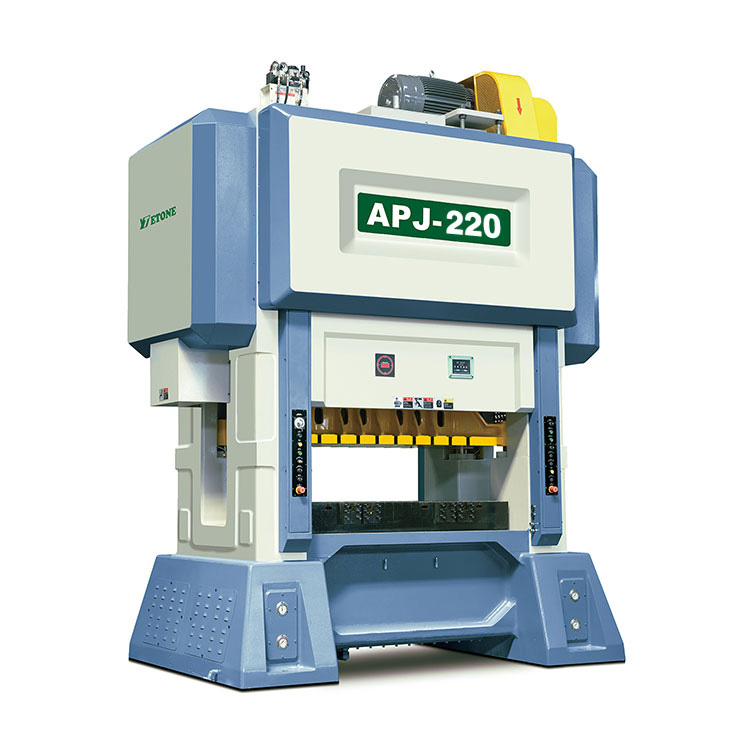

Troubleshooting high-speed punch press problems requires a systematic inspection and diagnosis process to ensure that every component that may have problems is fully inspected. Here are some common troubleshooting methods:
1. Check the power supply and control system:
Power supply problem: Make sure the power supply of the punch press is normal and the voltage is stable. If the power supply is unstable or there is a problem with the power cord, it may cause the equipment to not work properly.
Control panel check: Check whether the control system of the punch press is working properly. Check whether the control panel displays any error codes or warning indicators.
Fuse and circuit breaker: Check whether the fuse of the punch press is burned or the circuit breaker is tripped to ensure that there is no fault in the electrical part.
2. Check the air pressure system:
Air source pressure: Check whether the air pressure meets the requirements of the punch press. Too low air pressure will cause the punch press to run unstably or fail to start.
Air filter: Check whether the air filter of the pneumatic system is blocked, resulting in insufficient air flow or unstable air pressure.
Air pipe and joint: Check whether the air pipe is leaking and whether the joint is tight. Leakage will cause insufficient pressure in the pneumatic system, affecting the normal operation of the punch press.
3. Check the mechanical part:
Punch problem: Check if the punch is stuck with foreign objects or is severely worn, causing the punch press to not run smoothly.
Lubrication system: Make sure the mechanical part is properly lubricated. Lack of lubrication can cause parts to wear, jam or run smoothly.
Check the guide rails and sliders: The guide rails and sliders should not be excessively worn, deformed or stuck. Clean and lubricate them if necessary.
Punch mold inspection: Check whether the mold is aligned and not damaged. Problems with the mold may cause inaccurate punching or machine shutdown.
4. Check the transmission system:
Clutch and brake: Check whether the clutch is working properly and whether the brake can stop in time. If the clutch fails, it may cause the punch press to be unable to stop or start.
Belt and chain: Check whether the belt or chain is loose, worn or damaged, and adjust or replace it in time.
5. Check pressure and torque:
Insufficient pressure: Check the pressure gauge to ensure that the pressure of the punch press reaches the normal working range. If the pressure is insufficient, it may be insufficient air source or hydraulic system problems.
Torque adjustment: Make sure the torque of the punch press is set correctly. If the torque is set too high or too low, it may cause stamping quality problems.
6. Check the safety device:
Limit switch: Check whether the limit switch is working properly to ensure that the range of motion of the punch is not restricted or misoperated.
Safety guard: Check whether the safety guard of the punch is normal. If the safety device fails, it may cause the machine to fail to start or run unsafely.
7. Check the temperature and environment:
Overheat protection: If the temperature of the punch is too high, the overheat protection may be triggered. Check whether the heat dissipation system is effective and whether the fan or cooling system is working properly.
Environmental factors: Check whether the working environment meets the equipment requirements. An environment that is too humid or dusty may affect the operation of the punch.
8. Check the software and program:
Program settings: Make sure that the operating procedures and control parameters of the punch are set correctly. Sometimes, incorrect programs or improper settings may cause the machine to fail to work properly.
Software failure: If the punch uses a computer control system, check whether the software has a failure and restart or upgrade the software if necessary.
9. Fault record and diagnosis:
Error code and log: Check the machine's fault record or the error code on the display. Many high-speed punch presses are equipped with automatic fault diagnosis function, which can provide the cause of the fault and troubleshooting methods.
Restart the machine: Sometimes minor equipment faults can be solved by restarting. Try to shut down and restart the machine to see if it can resume normal operation.
10. Professional maintenance inspection:
If the above methods still cannot solve the problem, it is recommended to contact the manufacturer of the equipment or professional maintenance personnel for detailed inspection and repair. Especially for complex mechanical failures, professional technical support may be required.
Summary: When troubleshooting high-speed punch presses, it is necessary to check from multiple aspects such as power supply, pneumatic system, mechanical part, transmission system, safety device, etc. By checking each item, the source of the fault can be effectively found and solved to ensure that the punch press can operate safely and stably.
