Lamination power press

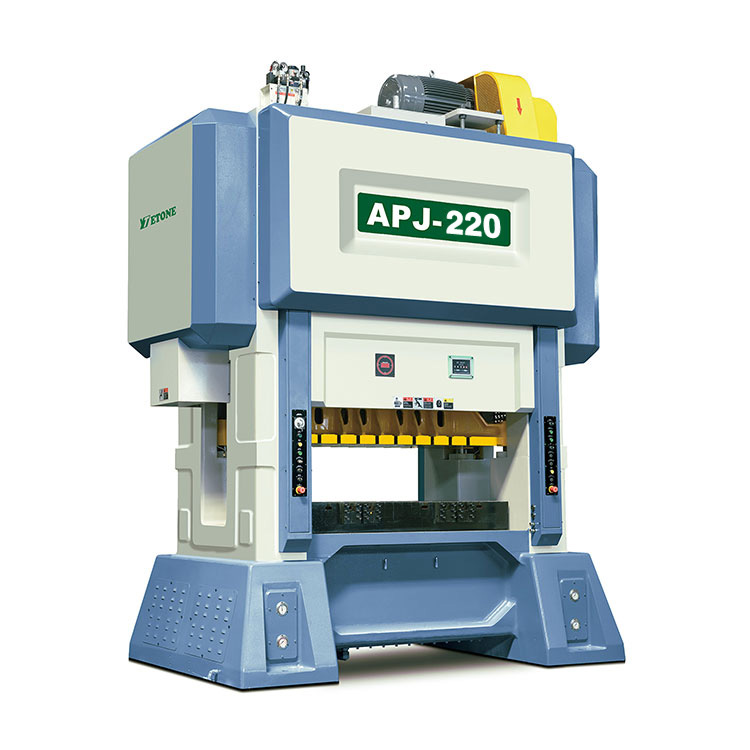

Lamination power press, high speed lamination press designed for the laminated rotors and stators of electric motors. It is high speed, high precision, change gear type, cam indexing roller feed is provided for different feed pitch.
Fully stress-relieved cast iron frame under hydraulically pre-stressed the rod construction ensures high speed laminating precision and rigidity.
2.Product Parameter
Efficiency and rapidity - Compared with manual stamping speed, one worker can see three punches (the most basic). Neatness and beauty - products made by automatic die lamination are neat and beautiful compared with manual lamination
|
|
|
APJ-220 |
APJ-300 |
APJ-350 |
APJ-400 |
APJ-450 |
|
Tonnage |
ton |
220 |
300 |
350 |
400 |
450 |
|
Travel |
mm |
30 |
30 |
30 |
30-50 |
30-50 |
|
Number of strokes per minute |
s.p.m |
150-600 |
150-400 |
150-350 |
150-350 |
150-300 |
|
Lower table size |
mm |
1900x1000 |
2200x1000 |
2400x1000 |
2800x1200 |
3000x1200 |
|
Blanking hole |
mm |
1400x300 |
2000x300 |
2200x300 |
2200x400 |
2500x400 |
|
Sliding block area |
mm |
1900x750 |
2200x900 |
2400x900 |
2800x1100 |
3000x1100 |
|
Die height adjustment stroke |
mm |
370-420 |
400-450 |
400-450 |
420-480 |
450-500 |
|
Die height adjustment motor |
kw |
1.5 |
2.2 |
2.2 |
3.7 |
3.7 |
|
Feeding line height |
mm |
200土50 |
210土50 |
210士50 |
220土50 |
270土50 |
|
Main motor |
kw |
45 |
55 |
55 |
75 |
75 |
3.Machine Standard accessories
1 Lubrication system: apply high pressure oil from crankshaft center（Japan SHOWA)
2 PLC control system: provide cutting signals
3 Bearing: NSK Japan
4 Oil atomizer: SMC Japan
5 Air switch and contactor: Schnede France
6 Oil seal: NOK Japan
7 Auto-balancing system design
8 Electronic slide adjustment system
9 T-Mobile operating table
10 Hydraulic Slide Locking Device
11 Material Ending Detector
12 Inverter:
13 Electric Clutch valve
14 Clutch structure: (OMPI Italy )
15 Relay: Omron
16 Angle and speed showing: TOYO
17 Air pressure joint: ARK Korea
18 Crankshaft: SNCM8,Grinding Guide: AKS Japan
19 Auto-Thermal Balancing in ram/Slider micro inching position
20 Miss-Feed detector
21 Tool box with machine shipping 1
4.Standard accessories:
1 High Speed Gear Feeder
2 Double rack Uncoiler
3 Straightener with S loop
4 Automatic oil device to die
5 Auto Power Die lifer system:
6 Die Arm system:2 pcs
7 Anti-vibration system
8 Chute controller:
9 Die solenoid valve installation system: 10 pcs
5. Optional Accessories
1. Bottom dead detector
2. Quick die clamping device
3. Safety door
4. Others
Host forward/reverse device
Hydraulic slide lock device
Lubricating oil cooling cycle machine
Italian OMPI int egrated clutch brake
Stand-alone electric control box
Work box
Work lamp
Main motor frequency convertin g control
